Top Hung Sound Proof Partitions System Acoustic Partition Panels Soundproofing Sliding Partition Wall For Meeting Room

Name: Top Hung Sound Proof Partitions System Acoustic Partition Panels Soundproofing Sliding Partition Wall For Meeting Room
Brand: EBUNGE
Price: 60 USD

China Top Hung Sound Proof Partitions System Acoustic Partition Panels Soundproofing Sliding Partition Wall For Meeting Room wholesale

Brand Name : EBUNGE

Model Number : Series 65 mm sound proof partitions wall

Place of Origin : Guangzhou,China

MOQ : 10pcs

Price : 60-119 USD per square meter

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 square meters per month

Delivery Time : Shipped in 10 days after payment, based on the quantity.

Packaging Details : Carton package, MDF batten on four section sides ,foam board on both front face.

Product name : Sound proof partitions wall

Material : Aluminium and mdf board

Height : Less then 4 m

Width : 500-1200 mm

Thickness : 65mm aluminum frame

Function : Sliding room divider

Finish : Melamine, fabric, leather, MDF bare finish

Warranty : Sound proof partitions wall warranty 3-5 years

Contact Now

Sound proof partitions system acoustic partition panels soundproofing sliding partition wall for meeting room

Description:

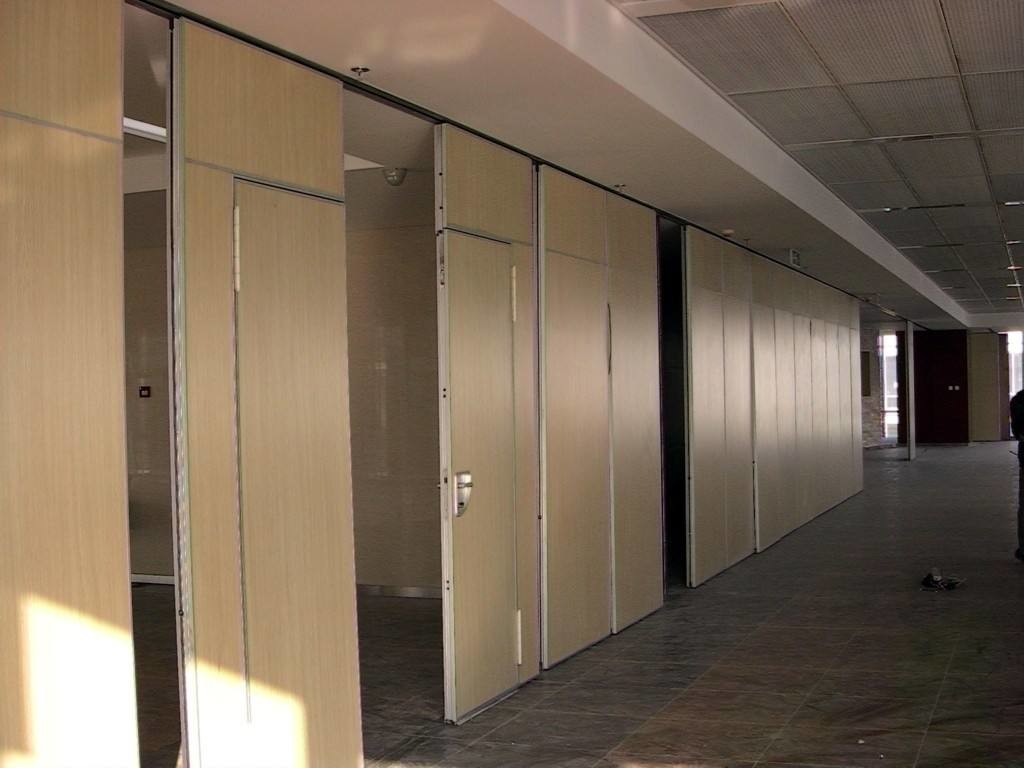

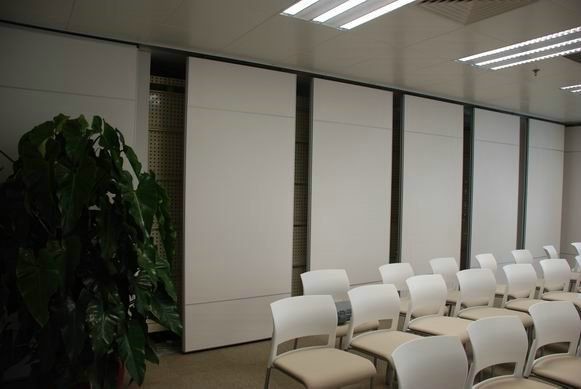

The movable partition walls we supply and install here can allow 2 rooms to become one large area.
Easy to operate, with manual operation available if you prefer, the walls can provide impressive sound reduction between rooms, yet open quickly to open up the space.
Walls can be top hung to enable them to operate no matter what the structure above. With a variety of stacking options on offer, we can neatly tuck the panels away when the wall is in the open position.
A range of panel finishes allows you to be sympathetic to your surroundings, from melamine, acoustic fabric, acoustic leather wall panels.

Top Hung Sound Proof Partitions System Acoustic Partition Panels Soundproofing Sliding Partition Wall For Meeting Room

Technical parameters:

Series	BG65	BG85	BG100
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Top Hung Sound Proof Partitions System Acoustic Partition Panels Soundproofing Sliding Partition Wall For Meeting Room

Track system installation :
1. As shown on the drawing, check the track that the track parts are assembled on the floor before installation.
2. Mark the track line and place the bracket in a specific position.
3. Mount the rail brackets to the ceiling.
4. Check if the mobile partition is rigidly fixed on the track. When the rails and brackets must be loosely stored in the storage area, so that the bracket plate can be moved to other places.
5. At the end, measure the proper location of the storage track before adjusting the main track facility. This is very important for the intersection placement.

Top Hung Sound Proof Partitions System Acoustic Partition Panels Soundproofing Sliding Partition Wall For Meeting Room

Feature:
Sound reduction from 37– 53dB RW.
Integral pass doors available.
Selection of stacking options.
Vision panels can be incorporated in solid variations.
Head or floor supported options.
Frame less glass option.
Available in a diverse range of real wood veneers, laminates melamine and vinyls.
