Restaurant Banquet Hall Acoustic Movable Partition Office Partition Walls
Movable partition walls details
1- 65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.
2-Top supported without floor track or guide, only have track on the ceiling.
3- clear anodized extruded aluminum tracks and frames,customized powder coated color are available.
4- Sound insulation certificate :STC 32db to 52db, ASTM standard of acoustic rate.
5- Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.
6- Fast delivery and Rich experiences in oversea project installation guide & supervision.
Features&Benefit
1. No rail suspension: the floor has no track, just install the track on the ceiling;
2. Stable and safe: stable and reliable after partitioning, not easy to swing;
3. Compartment environmental protection: the effect of the compartment is good, the maximum sound insulation coefficient can reach 50db;
4. Insulation and energy saving: excellent thermal insulation performance, according to different occupancy rates, the hall is divided into small spaces to reduce air conditioning power consumption;
5. Efficient fire prevention: It is made of high-efficiency fireproof material and has good fireproof performance;
6. Beautiful and generous: the movable partition walls surface is arbitrarily decorated, and can be combined with the interior decoration effect;
7. Retractable and flexible: the movable partition wall is freely retractable and flexible, and one person can complete the whole process of partitioning;
8. Convenient collection: When closing the board, the partition can be hidden in the special storage cabinet, which does not affect the overall appearance;
9. Wide range of applications: products used in hotels, hotels, restaurants, conference halls, exhibition halls, high clean factories and offices.
Movable partition walls technical details
| Model | BG-65 series | BG-80 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip |
| Side walls sealing strength | Double seal tape |
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel |
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized |
Movable partition walls application
The movable partition walls are widely used in hotel,auditorium,Gym,office,meeting rooms,exhibition halls,conference rooms,international convention centers,KTV,upscale restaurants,classroom,schools,hospitals,multi-purpose hall and other public places .
Product Tags:
|
|

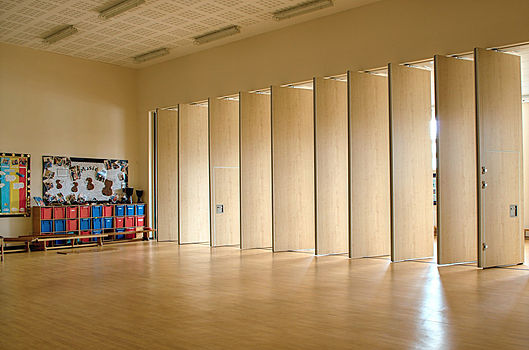

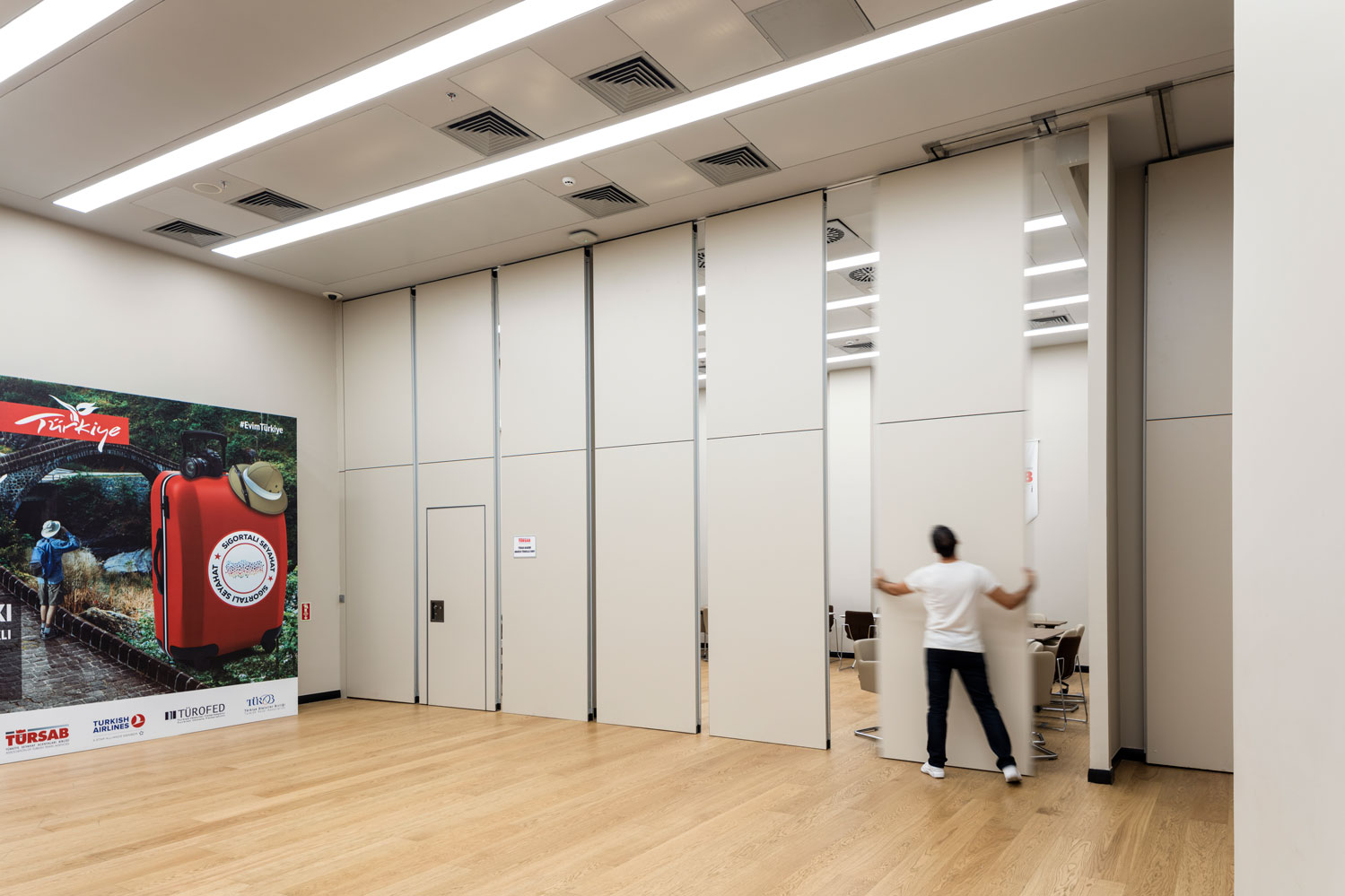

Restaurant Banquet Hall Acoustic Movable Partition / Office Partition Wall Images
|
