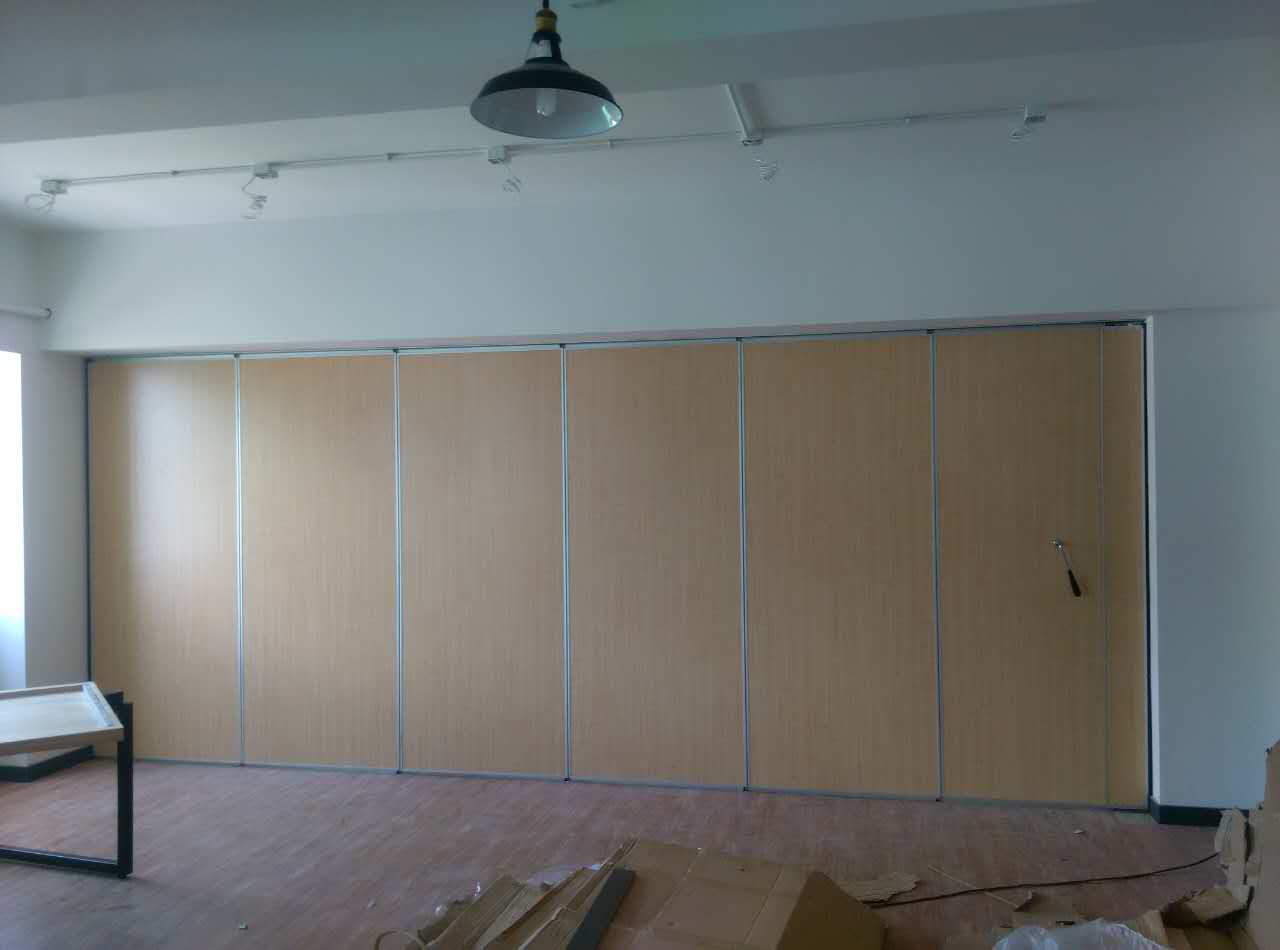

Operable Sliding Classroom Movable Wooden Partition Wall
Specification:
The partition wall is a movable wall that can be easily dismantled and reloaded, and is often found in large spaces such as hotels, exhibition halls, restaurants, and offices.
Soundproof materials can also be used as mobile screens, movable partitions, and track partitions. It is a kind of movable wall that can separate large spaces into adjacent small spaces. It can serve as a common wall and increase the function of large spaces. This screen is generally fire-resistant, flexible and easy to install and can be recycled.
There are 65, 85, 100, and 125 types of active screens, as well as models with semi-glass and telescopic models.
These activities screen hanging wheel material is generally particles, with high strength, wear resistance, acid and alkali resistance, corrosion resistance, to ensure its long life. The two wheels are equipped with a suspension wheel composed of steel rings. The movement is smooth, smooth and silent. The bearings can be configured to rotate the screen at a certain angle.
Type 65, Type 85, Type 100 and Type 125. The movable screen uses sound-absorbing glass fiber sound insulation materials. It has good fire insulation, noise reduction and noise reduction performance and meets relevant standards.
Feature:
Top hung system without the need for a floor track.
Retractable top and bottom seals ensure effortless movement of panels.
Concealed or exposed panel edge profiles.
Numerous panel stacking options for complete flexibility.
Extensive range of surface finishes available, easy construction and transportation.
The system offers various levels of sound reduction.
Combines elegance with robust construction.
Improved sound insulation with a reduced wall thickness.
Space savings in the parking area.
Low specific weights with obvious structural advantages.
Technical information:
| TYPE | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only |
| Track system | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
| Locking | Optional lock to passing doors |
| Passing doors | Single open in one panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Advantage:
The movable walls are a fine investment to make, no matter how much space you have available! Here, we have developed a wealth of knowledge and expertise over the years, installing movable walls and folding partitions, so you can rest assured that you’re in capable hands.
Specializing in design, manufacture and installation, we make sure that your movable walls are installed correctly, providing you with a temporary solution for dividing areas within your office. At movable Partitions, we accommodate the needs and requirements of all client’s, meeting and exceeding criteria, wherever possible.
Whether you’re looking for acoustic movable walls to minimize unwanted sounds or to modernism the layout of your office, we have just the solution! Our acoustic movable walls are designed to suit your exact specification, including your unique budget requirements.
No matter which of our concertina walls you choose to install to your property, you’re sure to discover products that are priced competitively, making it inevitable for you to receive the best value for your money.
