Movable Acoustic Wooden Partition Wall Commercial Furniture Aluminum Frame

Name: Movable Acoustic Wooden Partition Wall Commercial Furniture Aluminum Frame
Brand: BANGE
Price: 1 USD

China Movable Acoustic Wooden Partition Wall Commercial Furniture Aluminum Frame wholesale

Brand Name : BANGE

Model Number : 85 mm wooden partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 square meters

Price : US Dollars 80 - 120 per square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 square meters per month

Delivery Time : 15-20 days

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

Color : Accept customized

Application : Hotel,conference room

Panel width : 500 mm--1230 mm

Door material : Melamine board

Surface : Melamine,leather,fabric,plywood

Position : Interior

Open style : Sliding

Product name : Wooden partition walls

Feature : Sound resistant

Size : 85 mm(3 1/4 inch)

Contact Now

Commercial Furniture Aluminum Frame Movable Acoustic Wooden Partition Walls

Description

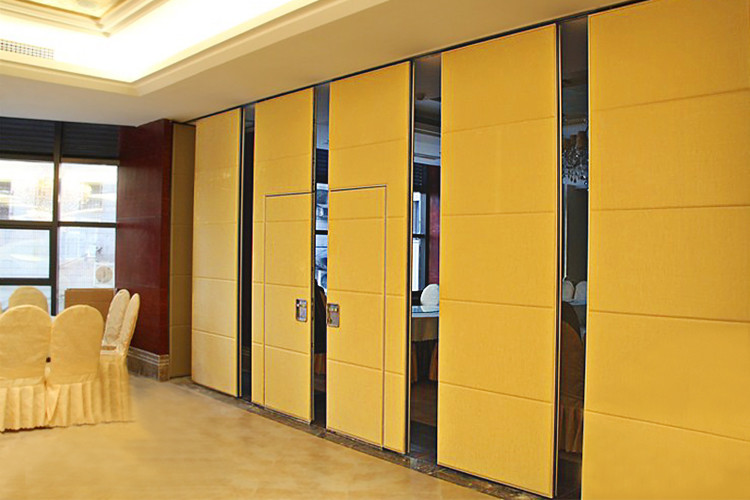

The movable wooden partition walls — also known as folding walls, flat panels, movable walls, and room dividers — set the standard for quality, durability, acoustic separation, and ease of movement.

They are the creative way to add flexibility and functionality to your space.

Features

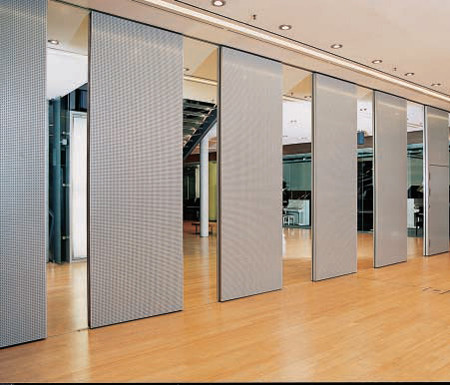

Movable wooden partition walls consist of a series of interlocking flat panels designed in custom widths up to 1524 mm and suspended from overhead tracks. Heights range from over-the-counter use to the more than 12288 mm tall panels used in convention centers.

Movable Glass Partition

BUNGE offers fully-functional, movable glass partition systems that obtain an aesthetic of perfect visual, geometric and sound-insulation continuity. The walls have tongue-and-groove profiles that allow them to telescope, fold and stack. Available in framed, frameless or solid panels, these minimalist walls systems have acoustical properties that achieve one of the highest STC ratings in the industry, up to 58 dB, and can be made 12 meters high to adapt to almost any space.

Movable Acoustic Wooden Partition Wall Commercial Furniture Aluminum Frame

Operation:

Wooden Partition Walls shall be top supported, manually operated panels stacked in an area nominated in the plans. When closed, the operable wall shall provide a complete sound retardant barrier. No floor track shall be used.

BUNGE movable wooden partition wall shall be 65 mm,85 mm,100 mm thickness series as furnished and installed by an authorised representative of BUNGE.

The movable wooden partition wall panel construction and finish materials shall consist of Class A rated materials in accordance with SLIWAL Standards.

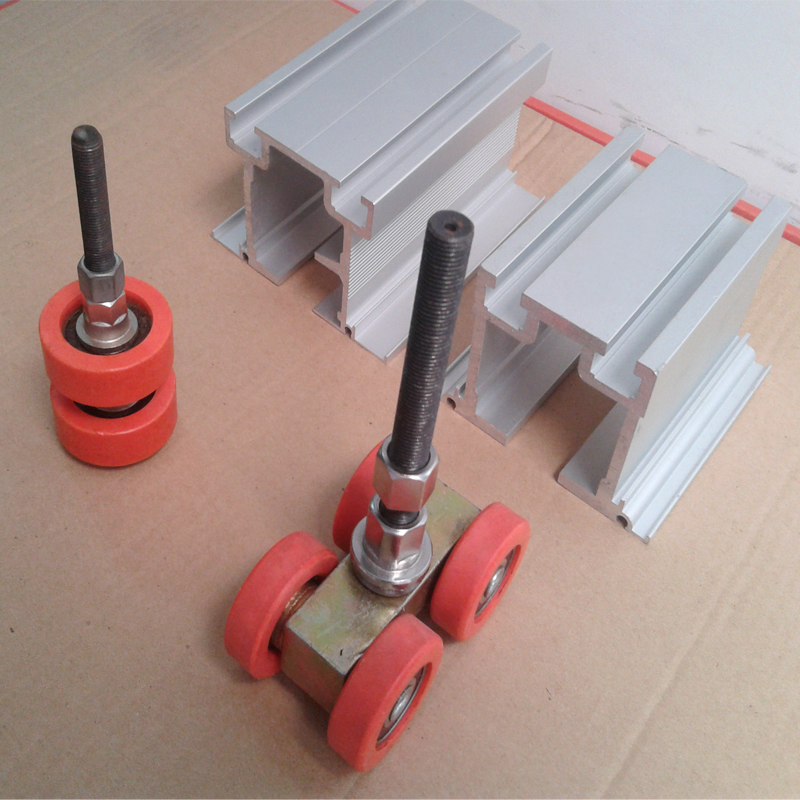

Track : The wooden partition walls tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.

Movable Acoustic Wooden Partition Wall Commercial Furniture Aluminum Frame

Wooden partition walls technics:

Series	BG65	BG80 / BG85	BG100 & BG125
Panel suspension	Top hung only	Top hung only	Top hung only
Track system	Single or twin point	Single or twin point	Single or twin point
Panel thickness	65mm	80mm / 85mm	100mm
Panel height	Up to 4000mm	Up to 6000mm	Up to 18000mm
Max height	4000mm	6000mm	18000mm
Panel width	600-1230mm	600-1230mm	600-1230mm
Frame construction	Aluminum frame	Aluminum frame	Aluminum frame
Face material	9mm	9mm / 12mm	12mm
Fire safety	Optional Class I or O	Optional Class I or O	Optional Class I or O
Vertical profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles	Aluminum anodised with sealing profiles
Retractable seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals	Aluminum black with double rubber seals
Operation of seals	Manual, with supplied operating handle	Manual, with supplied operating handle	Manual, with supplied operating handle
Locking	Optional lock to pass doors	Optional lock to pass doors	Optional lock to pass doors
Pass doors	Single open in panel or double open in two panel	Single open in panel or double open in two panel	Single open in panel or double open in two panel
Sound insulation	20-32dB Rw	28-36dB Rw	32-50dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx30-48kg/sq M
Finish Material	Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized)

Movable Acoustic Wooden Partition Wall Commercial Furniture Aluminum Frame
