Movable Wall Track Soundproof Office Sliding Acoustic Partition Wall System For Conference Hall

Name: Movable Wall Track Soundproof Office Sliding Acoustic Partition Wall System For Conference Hall
Brand: BANGE
Price: 82 USD

China Movable Wall Track Soundproof Office Sliding Acoustic Partition Wall System For Conference Hall wholesale

Brand Name : BANGE

Model Number : 65 mm acoustic partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : No MOQ, small quantity welcome

Price : US 82 - 102 dollars per square meter

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 500000 square meters per month

Delivery Time : 15 - 20 days

Packaging Details : Paper carton, outside with wooden box.

Product name : Acoustic partition walls

Thickness : 65 mm

Application : Conference hall partitions

Color : Color chart

Width : 500 - 1228mm

Feature : Sound insulation

Contact Now

Movable Wall Track Soundproof Office Sliding Acoustic Partition Wall System For Conference Hall

Acoustic partition walls system details

The acoustic partition walls system for conference hall is tongue-and-groove unitized panel system. Acoustic partition walls system panels are precision laminated, pre-finished with vinyl, fabric or other specified finish. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Acoustic partition walls system for conference hall lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.

1. You can divide a big space into smaller spaces as you wish with this partition.

2. Sound insulation coefficiency: 30~55dB.

3. Height: 2m-4m

4. Thickness: 65mm

5. Base Material: sound absorbent cotton, sound insulation cotton, sound insulation rubber, etc.

6. Frame: It's frame is made of strong and light weight aluminum.

7. Surface veneer: MDF panel, fabric panel, acoustic panel, etc.
Movable Wall Track Soundproof Office Sliding Acoustic Partition Wall System For Conference Hall

Acoustic partition walls system features

Acoustic partition walls for conference hall has top hung with no floor track.

Scissor-jack operating mechanism.

Available with virtually any surface finish.

Ideal for conference centres, hotels, offices & schools.

Angled, glazed, corner or junction panels for maximum flexibility.

Single or double point suspension for versatile stacking options.

Acoustic partition walls for conference hall with hinged pass door, single or double leaf inset pass door panels for access through.

Movable Wall Track Soundproof Office Sliding Acoustic Partition Wall System For Conference Hall

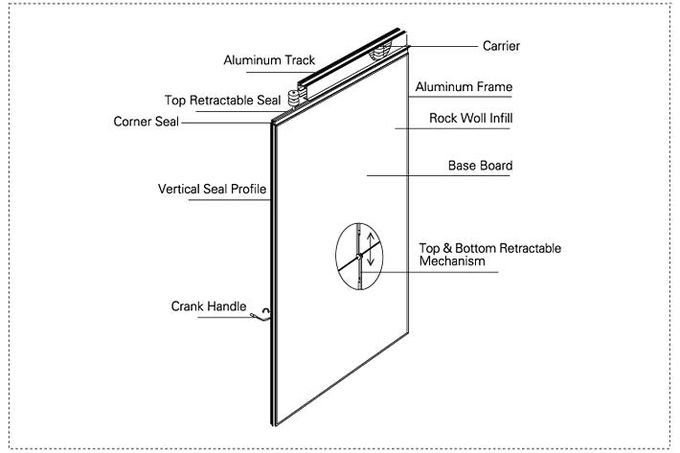

Acoustic partition walls system technical information

TYPE	BG65	BG85	BG100 & BG125
Panel suspension	Top hung only
Track system	Single or twin point
Panel thickness	65 mm	85 mm	100 mm
Panel height	Up to 4000mm,heights greater than 3000mm refer to our technical dept.	Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height	4000mm	6000mm	18000mm
Panel width	500 - 1200mm 1' 5/8" -- 4'	500 - 1200mm 1' 5/8" -- 4'	500 - 1200mm 1' 5/8" -- 4'
Frame	Aluminum	Aluminum	Aluminum
Surface material	9mm	9mm	12mm
Fire safety	Optional class I	Optional class I	Optional class I
Vertical profiles	Aluminum, anodized with sealing profiles, painter optional	Aluminum, anodized with sealing profiles, painter optional	Aluminum, anodized with sealing profiles, painter optional
Retractable seals	Aluminum, black with double rubber seals	Aluminum, black with double rubber seals	Aluminum, black with double rubber seals
Operation of seals	Manual, with supplied operating handle
Locking	Optional lock to passing doors
Passing doors	Single open in one panel or double open in two panel
Sound insulation	32-38dB Rw	36-45dB Rw	42-55dB Rw
Weight	Approx 22-35kg/sq M	Approx 25-40kg/sq M	Approx 30-48kg/sq M

Movable Wall Track Soundproof Office Sliding Acoustic Partition Wall System For Conference Hall
