Brand Name : BUNGE
Model Number : 65 mm movable partition walls
Certification : ISO9001
Place of Origin : Guangdong
MOQ : 10 squaremeters
Price : 72/ 105 dollars per square meter
Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability : 5000 squaremeters per month
Delivery Time : Shipped in 10 days after payment, based on the quantity
Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.
Material : MDF+Aluminum
Color : Color Selective (Customized)
Finishing : Melamine,fabric,leather
Style : Sliding
Service : OEM ODM
Product name : Movable partition walls
Thickness : 65 mm(2 9/16 inch)
Interior : Interior
Application : Office,conference room
Panel width : 500 mm--1220 mm
Hanging System Aluminum Acoustic Movable Partition Walls for Restaurant
Our advantage:
1. Competitive price and good quanlity workmanship.
2. Modern, Comfortable, Elegant and endurable, Environmentally-friendly materials
3. The best after-sales service, Mutual Development, Mutual Benefits, so make long time cooperation
4. Thousands of models for choice, fully meet different customers' demands.
5. Different styles with different material and price range, control cost in the best way.
6. Customized service: OEM, ODM available.
7. More than 10-year experience
Packaging:
1. Knock down packing usually, Client packing way are welcome
2. Each part is packed with PE Foam Inside and professional corner protection
3. Outside with double strong 5 layers carton boxes,
4. Carton boxes print with the customers Logo and description, inside instruction manual easy for assemble
5. with Glass parts are packed by wooden frame to to avoid fragile
Bunge Operable Wall Systems-Technical Information
TYPE | BG65 | BG85 | BG100 & BG125 |
Panel suspension | Top hung only | ||
Track system | Single or twin point | ||
Panel thickness | 65 mm | 85 mm | 100 mm |
Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. | |
Max height | 4000mm | 6000mm | 18000mm |
Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
Frame | Aluminum | Aluminum | Aluminum |
Surface material | 9mm | 9mm | 12mm |
Fire safety | Optional class I | Optional class I | Optional class I |
Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
Operation of seals | Manual, with supplied operating handle | ||
Locking | Optional lock to passing doors | ||
Passing doors | Single open in one panel or double open in two panel | ||
Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Common Applications:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
![]() |

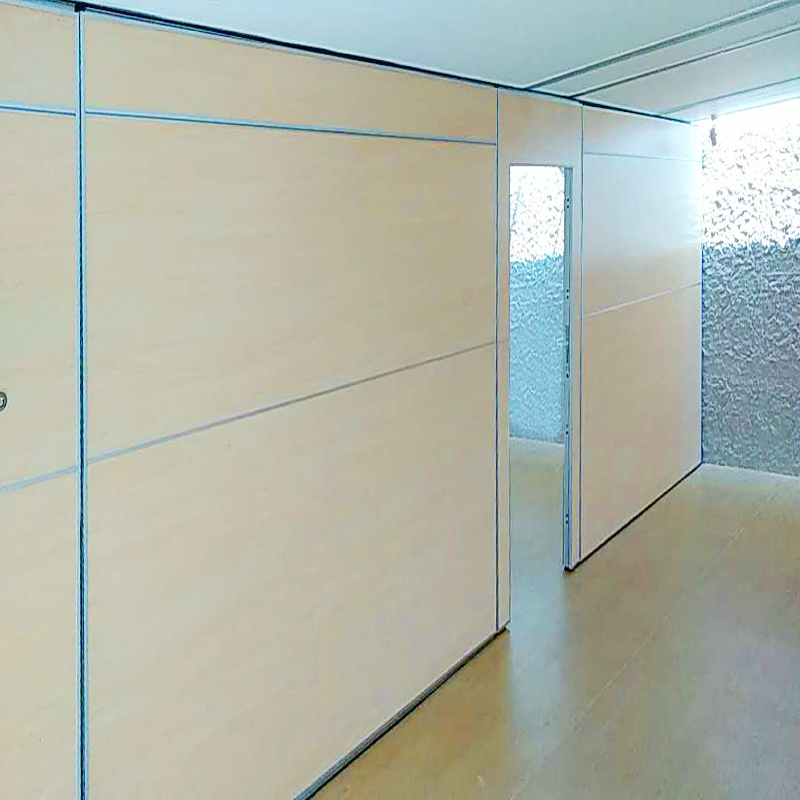

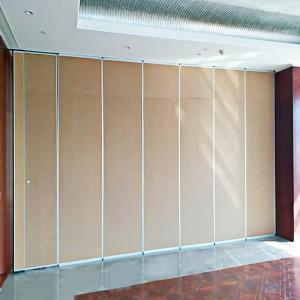

Hanging System Aluminum Acoustic Movable Partition Walls for Restaurant Images |
